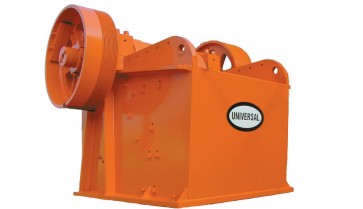

The Universal Overhead Eccentric Jaw Crushers are constructed from top quality material for rugged service in a tough industry! Universal Jaw Crushers are the most efficient on the market today. A deeper crushing chamber provides better nip angle while reducing rebound, ensuring continuous crushing action with less abrasive wear. Longer throw provides sharp crushing action, leaving fewer slabs and slivers. Radial toggle action with a downward thrust force feeds material and ensures top production with less plugging. Reversible jaws provide longer jaw life, assure less downtime, and greater economy. Each Universal Jaw Crusher is designed with a wide range of discharge settings. Unlike competitive units, the closed-side-setting of the Universal Jaw Crusher is measured from peak to valley on the corrugated jaw plates for improved product sizing control at each designated setting.

Standard Design Features:

1. Rigid one-piece fabricated base frame reinforced for unmatched durability and strength
2. Jaw openings are measured from inside the wear plates providing a larger crushing chamber for greater reduction and overall capacities.
3. Universal Jaw Crushers are known for their deep crushing chambers that provide a positive, non- rebounding nip for faster throughput.
4. Replacement key wedges and heel plates secure the stationary jaw plate and prevent wear on the sides of the crusher base.
5. Reversible manganese jaw plates provide for a severe duty wear surface that work-hardens and allows for maximum wear life.
6. The massive cast steel pitman is heavily reinforced and finely machined to provide the ability to absorb the shock loads.
7. Large balanced flywheels supply continuous driving force to the crushing action.
8. The single toggle design incorporates a dual purpose toggle plate that not only allows for setting the discharge of the crusher, but is also designed as a shear point to protect the crusher in the case of tramp iron.
9. Hydraulic shim adjustment minimizes downtime when changing the discharge setting and provides for quick and easy adjustments.
10. Greater throughput combined with low-cost maintenance equals higher profits every day of operation. The Universal Jaw Crusher is field-proven worldwide as an efficient, cost-effective primary crusher in the toughest environments.
