Hammer Crusher
Home > Crusher and Mill > Fixed Stone Crusher > Impact Crusher of European Type
Impact Crusher of European Type click to buy this product

Impact Crusher of European Type

Max Feeding Size: 250-700mm
Capacity: 70 - 480(Ton/H)
Category: Primary Crusher, Secondary Crusher
Price: Inquiry

Impact Crusher of European Type is widely applied in mining, transportation, energy, construction and chemical industry. They are ideal choice for crushing and screening. This Impact Crusher of European Type features reasonable structure, high productivity, easy operation and maintenance and safe performance.The most outstanding advantage of this machine is that its finished powder is in good, cubic shape and without tensility and cranny.

PFW series impact crusher improve the adjusting device, easy to operate. The design of three chamber crushing make the PFW series impact crusher perform well in the fine crushing and superfine crushing operation. The design of the two chamber crushing simplifies the flow chart of coarse crushing operation.

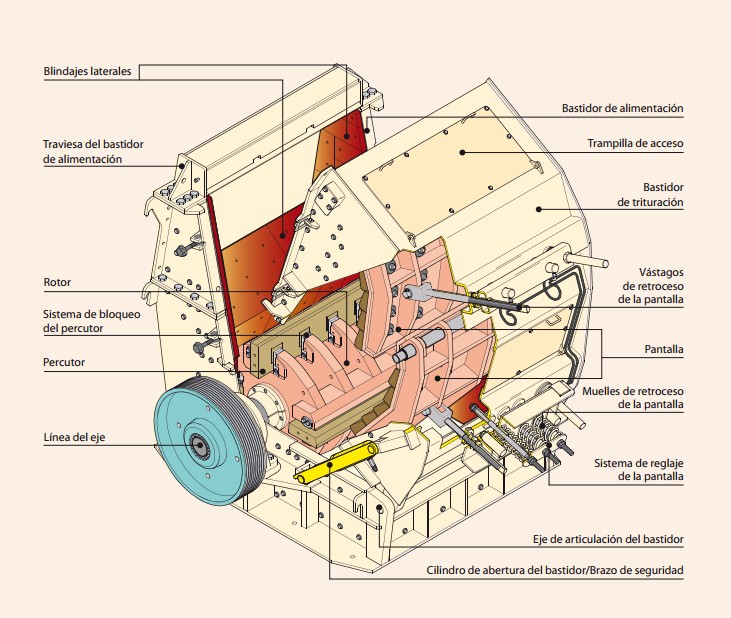

The Structure of Impact Crusher of European Type

The Structure of Impact Crusher of European Type

Features of Impact Crusher of European Type

  1. Adoption of the world-class manufacturing processes and selection of the most high-end raw materials.
  2. Heavy type rotor design and strict testing method to guarantee high quality rotor.
  3. Adoption of the Integral cast steel structure on bearing seat makes it matches well with the crushing frame and increases the radial strength of it, while the divided design does not has this advantage.
  4. The unique fixing device for hammers,make it more reliable.
  5. The hydraulic adjusting device makes the maintenance easier and less.
  6. Self-equipped open-top device can quickly complete the replacement of wearing parts such as the hammer.

crusher with three crushing chambers
Model Rotor size (mm) Feed opening (mm) Max. Feed size (mm) capacity (t/h) Power (kW) weight (t) Overall dimension (mm)
PFW1210Ⅲ Ф1150×960 570×990 250 70-120 110 15 2550×1870×2100
PFW1214Ⅲ Ф1150×1400 570×1430 250 90-170 132 19 2550×2310×2100
PFW1315Ⅲ Ф1300×1500 625×1530 300 180-270 160 25 2960×2570×2380
PFW1318Ⅲ Ф1300×1800 625×1830 300 220-300 200 30 2960×2870×2380
PFW1415Ⅲ Ф1400×1500 800×1530 350 280-350 200 33 3120x2650x2660
crusher with two crushing chambers
Model Rotor size (mm) Feed opening (mm) Max. Feed size (mm) capacity (t/h) Power (kW) weight (t) Overall dimension (mm)
PFW1210Ⅱ Ф1150×960 1100x1030 400 90-160 110 17 2400x1870x2550
PFW1210Ⅱ Ф1150×1400 1100x1430 500 130-200 132 22 2400x2310x2550
PFW1315Ⅱ Ф1300×1500 1200x1530 600 180-320 160 29 2700x2570x2800
PFW1318Ⅱ Ф1300×1800 1200x1830 700 240-400 200 34 27002870x2800
PFW1415Ⅱ Ф1400×1500 1300x1530 700 300-480 200 38 2900x2700x3000

Tags: Crusher
